pacman::p_load(tidyverse, plotly, crosstalk, DT, ggdist, gganimate)
exam <- read_csv("data/Exam_data.csv")Hands-on_Ex04.2
10 Visualising Uncertainty
10.1 Learning Outcomes
- Visualising the uncertainty of point estimates
Note
- A point estimate is a single number, such as a mean.
- Uncertainty is expressed as standard error, confidence interval, or credible interval
- Important:
- Don’t confuse the uncertainty of a point estimate with the variation in the sample
10.2.1 Visualizing the uncertainty of point estimates: ggplot2 methods The code chunk below performs the followings:
- group the observation by RACE,
- computes the count of observations, mean, standard deviation and standard error of Maths by RACE, and
- save the output as a tibble data table called my_sum.
my_sum <- exam %>%
group_by(RACE) %>%
summarise(
n=n(),
mean=mean(MATHS),
sd=sd(MATHS)
) %>%
mutate(se=sd/sqrt(n-1))Next, the code chunk below will
knitr::kable(head(my_sum), format = 'html')| RACE | n | mean | sd | se |
|---|---|---|---|---|
| Chinese | 193 | 76.50777 | 15.69040 | 1.132357 |
| Indian | 12 | 60.66667 | 23.35237 | 7.041005 |
| Malay | 108 | 57.44444 | 21.13478 | 2.043177 |
| Others | 9 | 69.66667 | 10.72381 | 3.791438 |
10.2.2 Visualizing the uncertainty of point estimates: ggplot2 methods

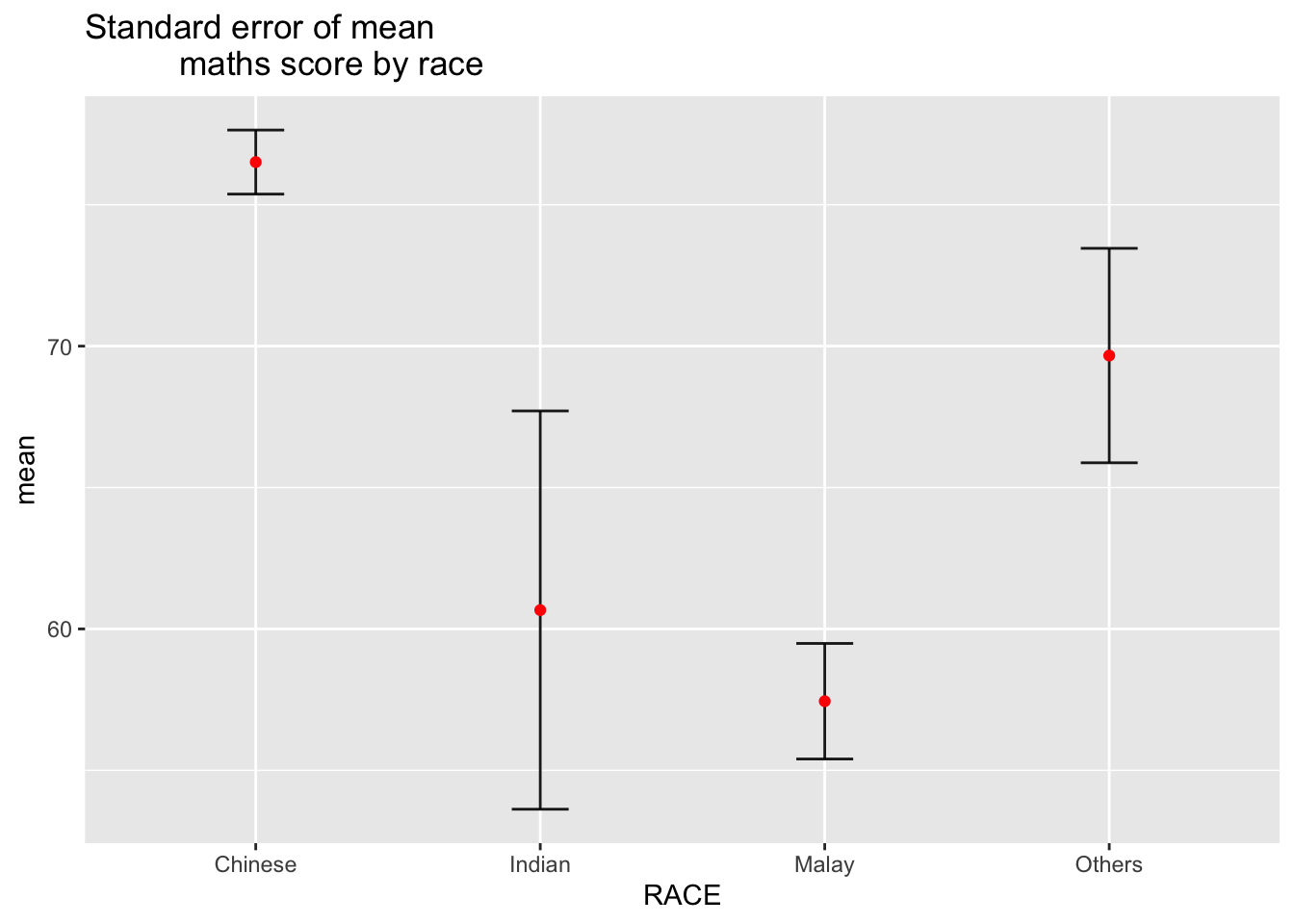

The code chunk below is used to reveal the standard error of mean maths score by race.
ggplot(my_sum) +
geom_errorbar(
aes(x=RACE,
ymin=mean-se,
ymax=mean+se),
width=0.2,
colour="black",
alpha=0.9,
size=0.5) +
geom_point(aes
(x=RACE,
y=mean),
stat="identity",
color="red",
size = 1.5,
alpha=1) +
ggtitle("Standard error of mean
maths score by race")Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

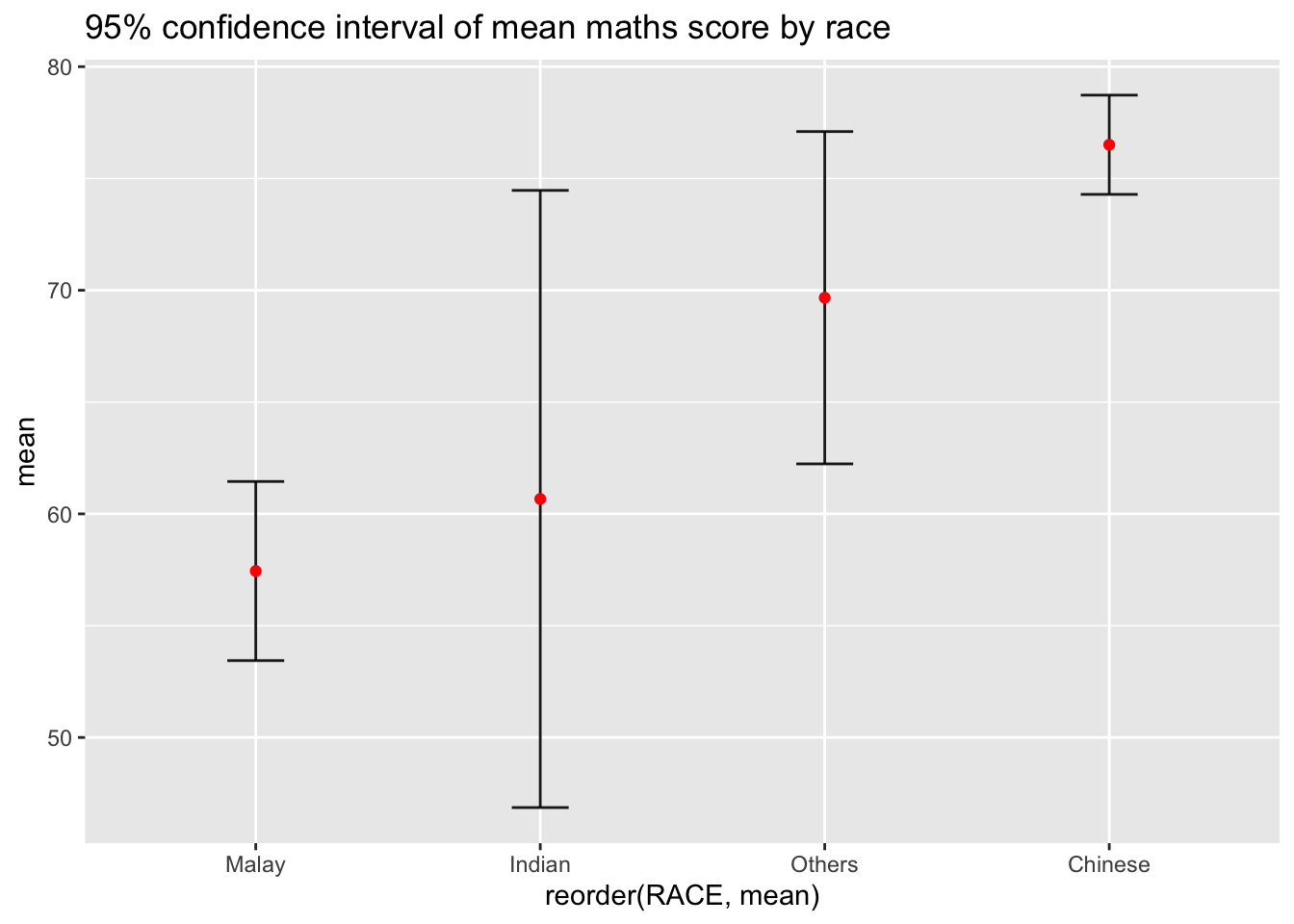

10.2.3 Visualizing the uncertainty of point estimates: ggplot2 methods
ggplot(my_sum) +
geom_errorbar(
aes(x= reorder(RACE,mean),
ymin=mean - 1.96*se,
ymax=mean + 1.96*se),
width=0.2,
colour="black",
alpha=0.9,
size=0.5) +
geom_point(aes
(x=RACE,
y=mean),
stat="identity",
color="red",
size = 1.5,
alpha=1) +
ggtitle("95% confidence interval of mean maths score by race")
10.2.4 Visualizing the uncertainty of point estimates with interactive error bars
d <- highlight_key(my_sum)
p <- ggplot(my_sum) +
geom_errorbar(
aes(x= reorder(RACE,mean),
ymin=mean - 2.58*se,
ymax=mean + 2.58*se),
width=0.2,
colour="black",
alpha=0.9,
size=0.5) +
geom_point(aes
(x=RACE,
y=mean),
stat="identity",
color="red",
size = 1.5,
alpha=1) +
ggtitle("99% confidence interval of mean maths score by race")
gg <- highlight(ggplotly(p),
"plotly_selected")
crosstalk::bscols(gg,
DT::datatable(d),
widths = 5) 10.3 Visualising Uncertainty: ggdist package

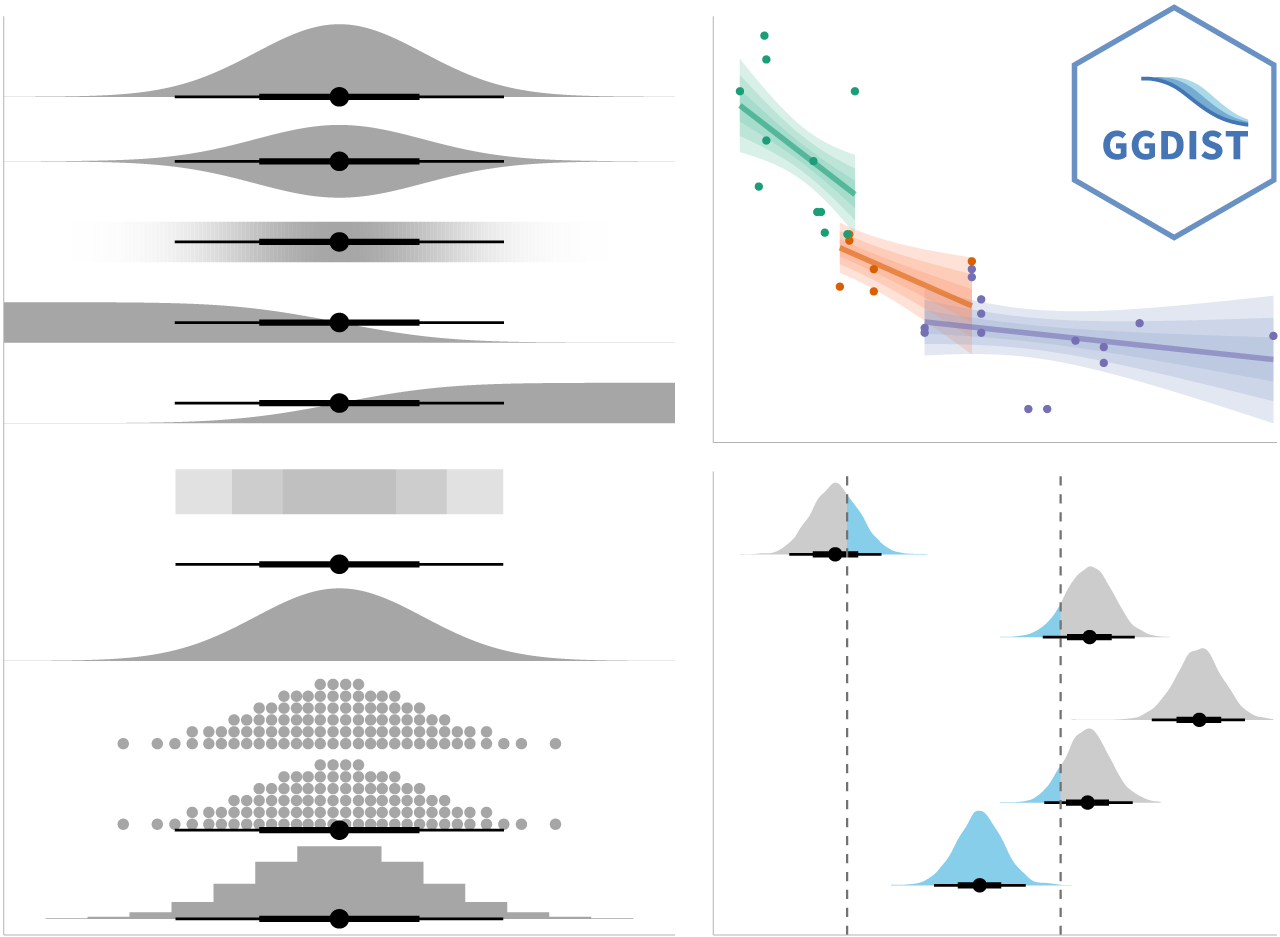

ggdist is an R package that provides a flexible set of ggplot2 geoms and stats designed especially for visualising distributions and uncertainty.
It is designed for both frequentist and Bayesian uncertainty visualization, taking the view that uncertainty visualization can be unified through the perspective of distribution visualization:
for frequentist models, one visualises confidence distributions or bootstrap distributions (see vignette(“freq-uncertainty-vis”));
for Bayesian models, one visualises probability distributions (see the tidybayes package, which builds on top of ggdist).
10.3.1 Visualizing the uncertainty of point estimates: ggdistmethods

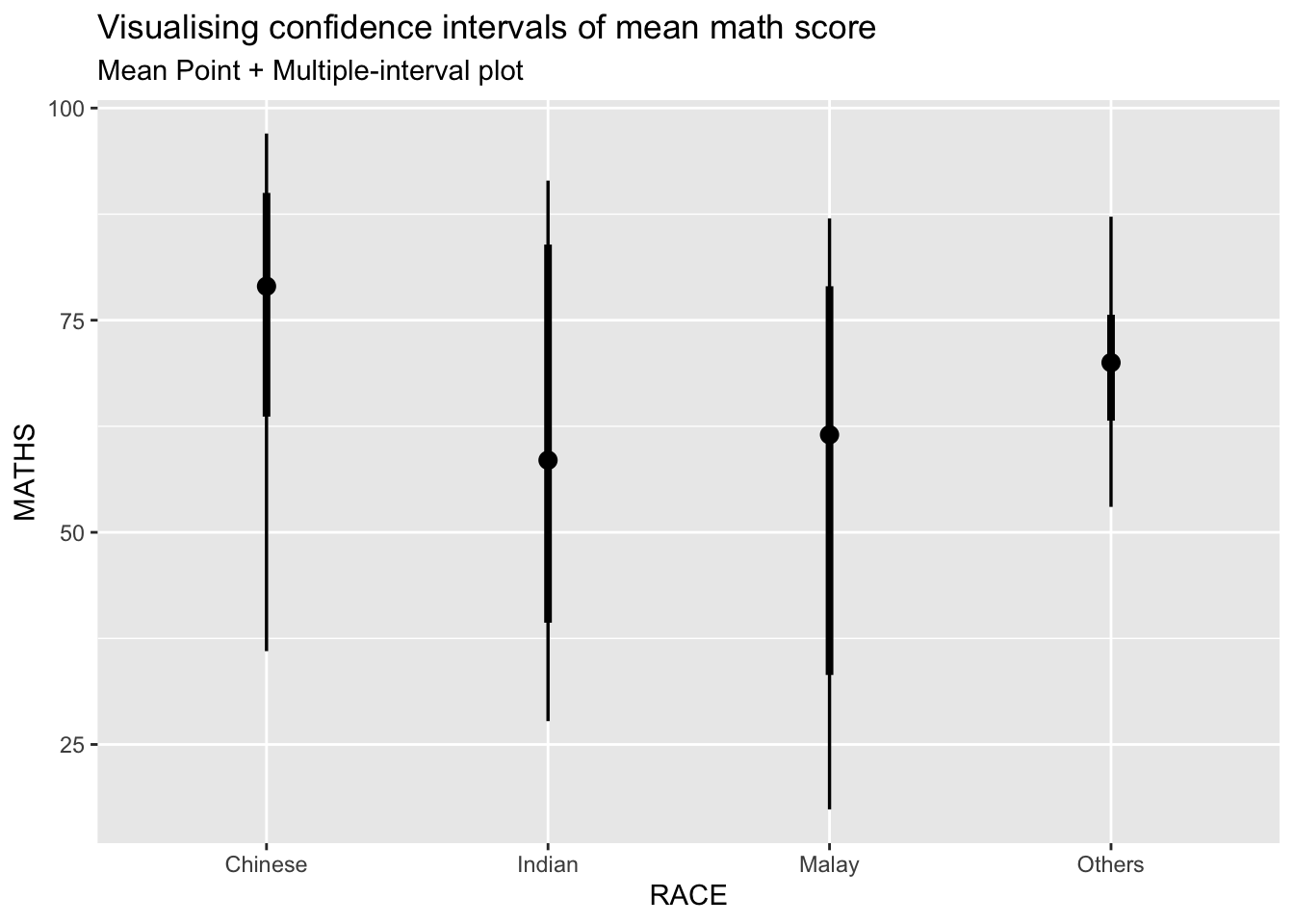

In the code chunk below, stat_pointinterval() of ggdist is used to build a visual for displaying distribution of maths scores by race.
exam %>%
ggplot(aes(x = RACE,
y = MATHS)) +
stat_pointinterval() + #<<
labs(
title = "Visualising confidence intervals of mean math score",
subtitle = "Mean Point + Multiple-interval plot")
Gentle advice: This function comes with many arguments, it is advised to read the syntax reference for more detail.

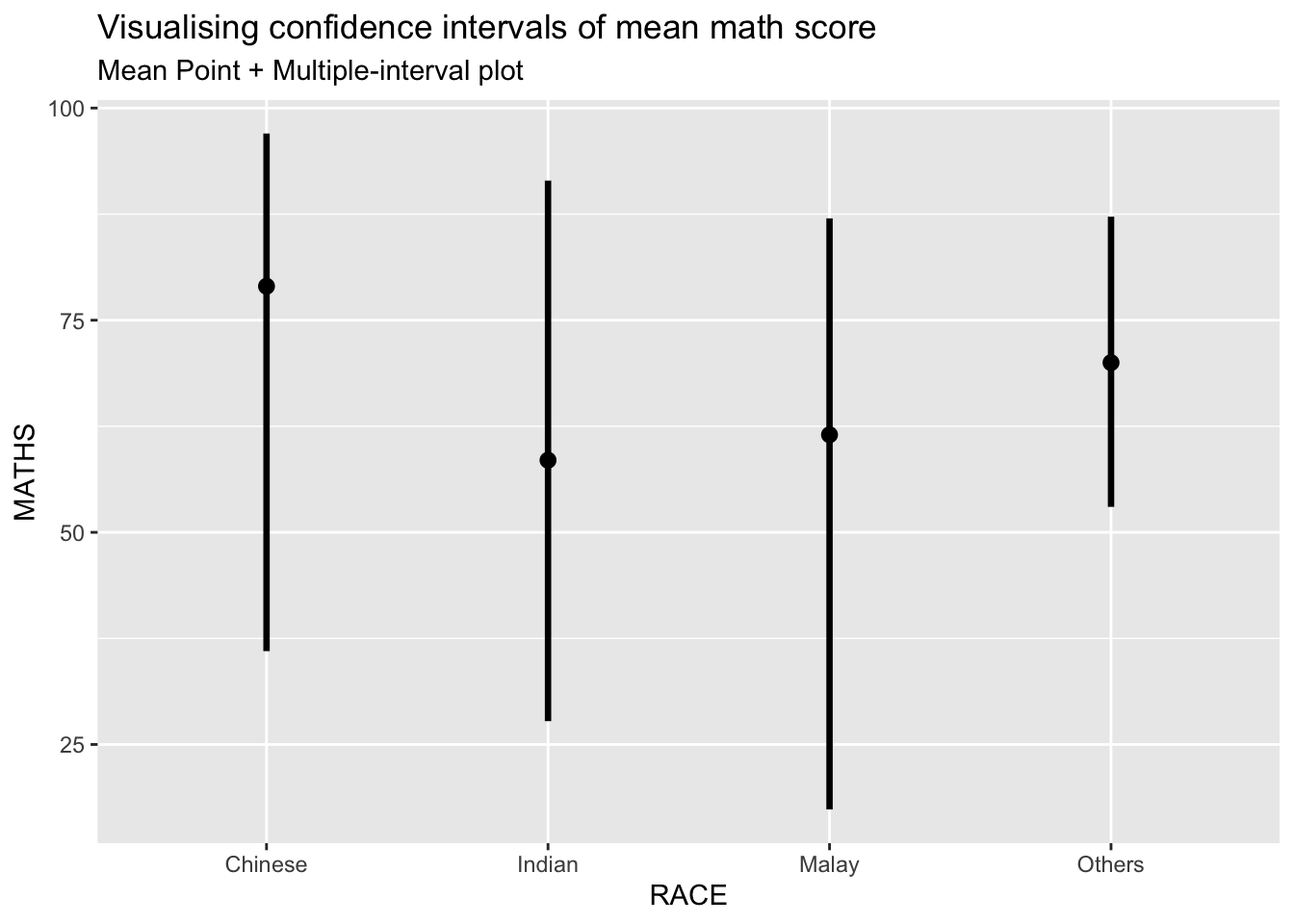

exam %>%
ggplot(aes(x = RACE, y = MATHS)) +
stat_pointinterval(.width = 0.95,
.point = median,
.interval = qi) +
labs(
title = "Visualising confidence intervals of mean math score",
subtitle = "Mean Point + Multiple-interval plot")Warning in layer_slabinterval(data = data, mapping = mapping, stat =
StatPointinterval, : Ignoring unknown parameters: `.point` and `.interval`
10.3.3 Visualizing the uncertainty of point estimates: ggdistmethods

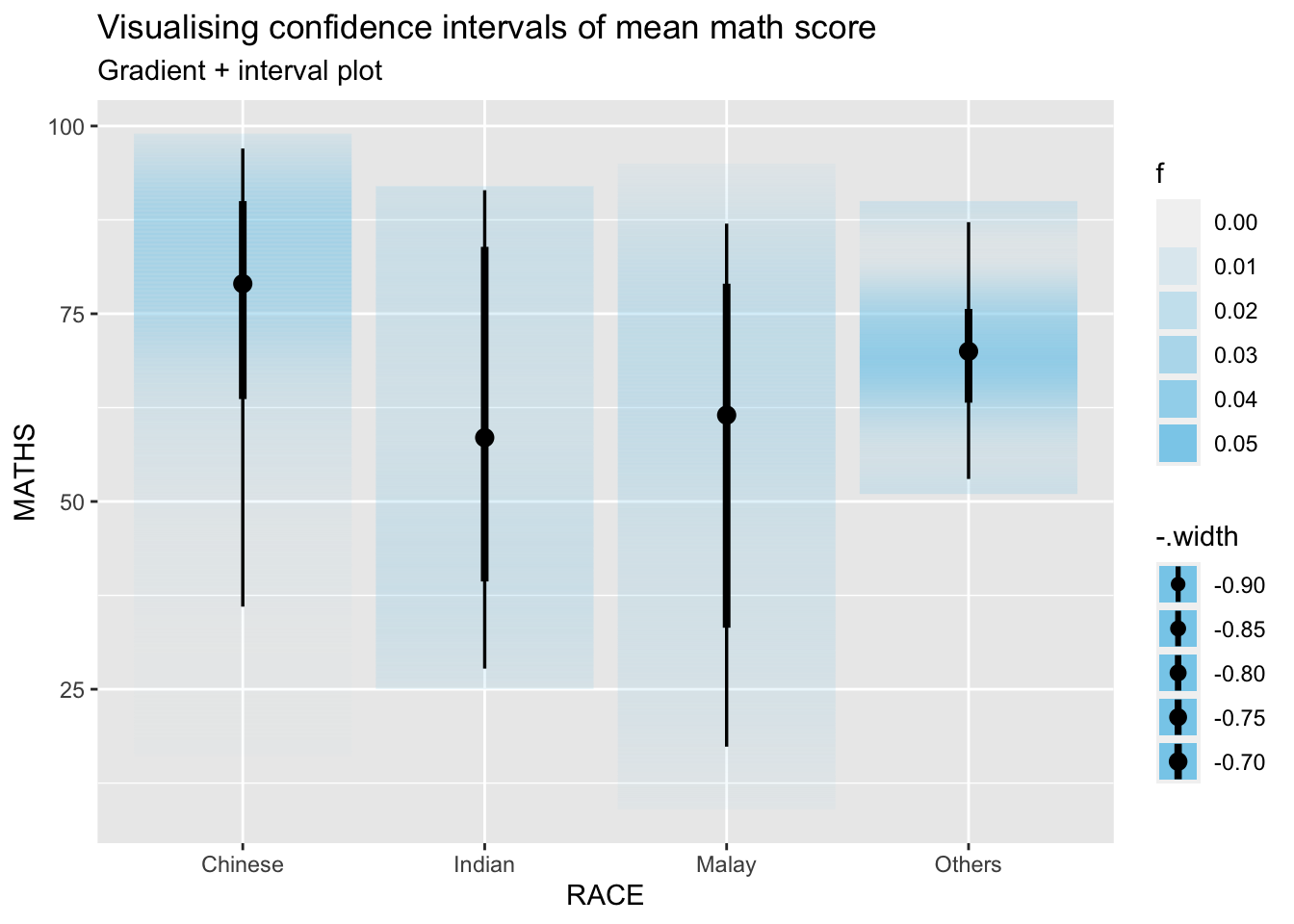

In the code chunk below, stat_gradientinterval() of ggdist is used to build a visual for displaying distribution of maths scores by race.
exam %>%
ggplot(aes(x = RACE,
y = MATHS)) +
stat_gradientinterval(
fill = "skyblue",
show.legend = TRUE
) +
labs(
title = "Visualising confidence intervals of mean math score",
subtitle = "Gradient + interval plot")Warning: fill_type = "gradient" is not supported by the current graphics device.
- Falling back to fill_type = "segments".
- If you believe your current graphics device *does* support
fill_type = "gradient" but auto-detection failed, set that option
explicitly and consider reporting a bug.
- See help("geom_slabinterval") for more information.
10.4 Visualising Uncertainty with Hypothetical Outcome Plots (HOPs)
Step 1: Installing ungeviz package
devtools::install_github("wilkelab/ungeviz")Skipping install of 'ungeviz' from a github remote, the SHA1 (aeae12b0) has not changed since last install.
Use `force = TRUE` to force installationStep 2: Launch the application in R

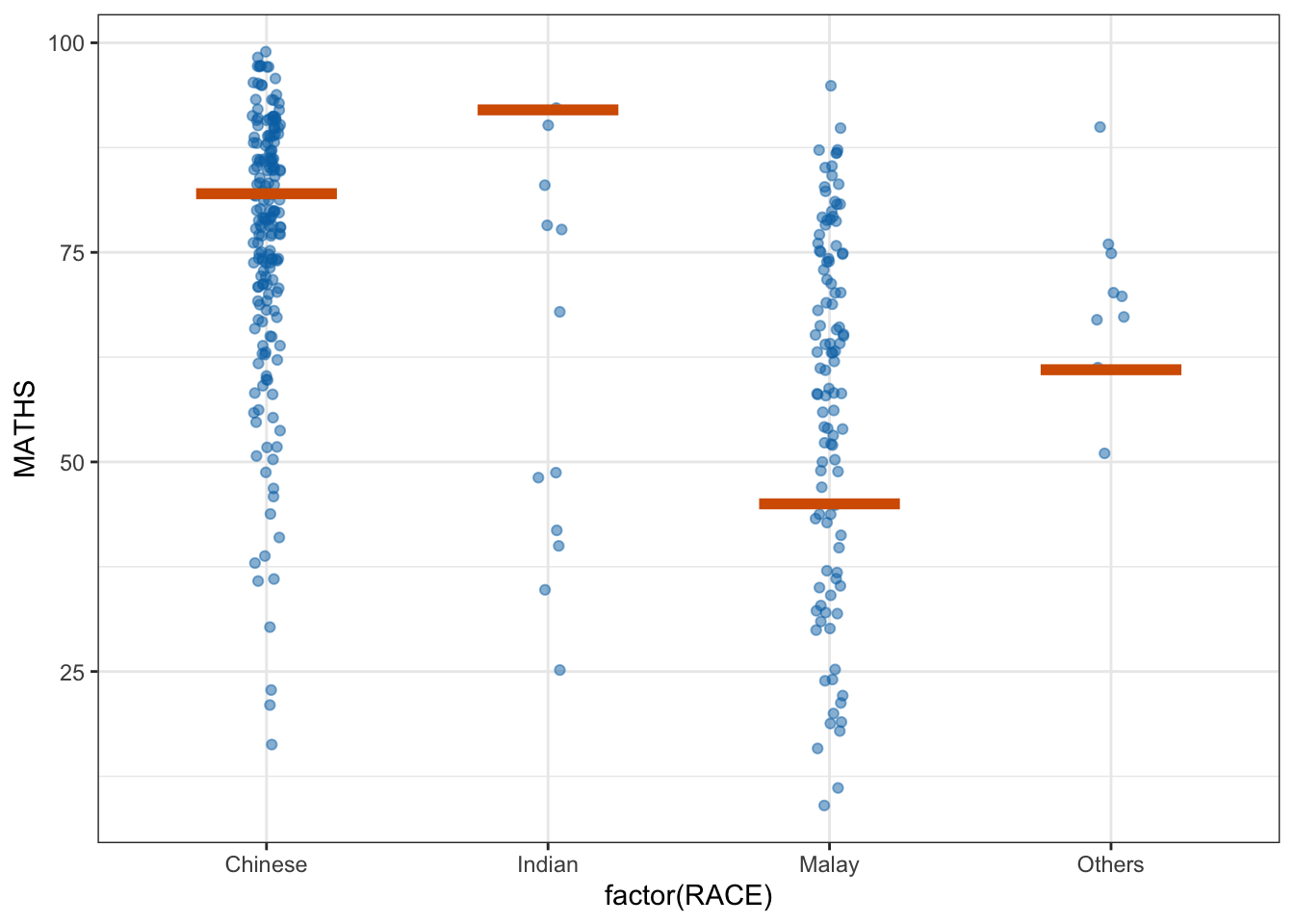

library(ungeviz)10.5 Visualising Uncertainty with Hypothetical Outcome Plots (HOPs)
ggplot(data = exam,
(aes(x = factor(RACE), y = MATHS))) +
geom_point(position = position_jitter(
height = 0.3, width = 0.05),
linewidth = 0.4, color = "#0072B2", alpha = 1/2) +
geom_hpline(data = sampler(25, group = RACE), height = 0.6, color = "#D55E00") +
theme_bw() +
# `.draw` is a generated column indicating the sample draw
transition_states(.draw, 1, 3)
